84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket

Product Categories
Sunshine Opto-electronics Enterprise Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

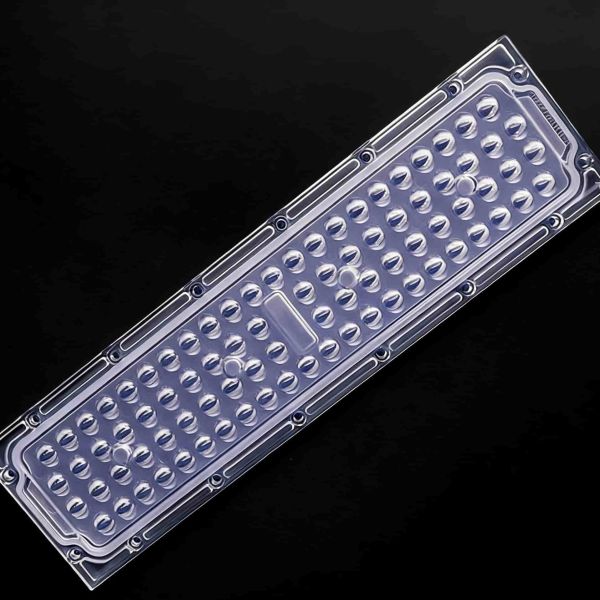

84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket

Brand Name : Sunshineopto

Model Number : SUN-D252-84H1-136x78-TPII-S-H

Certification : SGS,RoHS,CE

Place of Origin : Shenzhen,China

MOQ : 100

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 10000pcs/months

Delivery Time : 7-10 working days

Packaging Details : Cartons

Price : negotiate

Product Name : 84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket

Model No. : SUN-D252-84H1-136x78-TPII-S-H

PCB Size : 226x57.9x1.5mm

Lens Dimension : 252x70x6.3mm

PCB Circuit : 6 series 14 parallel

Lens Angle : 136x78 degree

Transmittance : 91%

Lens Material : Optical grade PC

Contact Now

84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket
This high-performance LED module features advanced optical design for superior street lighting applications with excellent luminous efficiency.
Product Overview
The 84-in-1 136x78 Degree Vertical Angle LED Lens, crafted from optical grade PC material, is designed to provide precise and efficient light distribution for various lighting applications. With its 136x78 degree beam angle and silicon gasket, this LED lens ensures superior performance and long-lasting durability, making it ideal for outdoor lighting, commercial lighting, and high-intensity applications.This lens is engineered for use in SMD LED modules and provides uniform light distribution, ensuring optimum brightness and enhanced energy efficiency. The silicon gasket ensures a perfect seal, providing weatherproof capabilities for outdoor lighting systems that require high protection against environmental factors.Ideal for clients in lighting design and manufacturing, this LED lens module provides a reliable solution for large-scale lighting projects in both indoor and outdoor environments. Whether you're lighting street lamps, floodlights, or security lights, this lens guarantees efficient light distribution, enhancing the overall lighting quality and reducing energy consumption.
Product Features
  • Custom lens and board design available according to specific requirements
  • Optical Grade PC Material for High Durability and Clarity
  • Silicon Gasket for Weatherproof Sealing
  • SKD 84 LED array lens with PCB module using PH3030 LEDs, optimized for 50W power lamps
  • Lowest total cost solution for replacing Metal Halide or HPS bulbs while reusing existing housings
Technical Specifications
Product Name 50W LED Street Light Module SMD 3030 LED Lens PC Material
Model No SUN-D252-84H1-136x78-TPII-S-H
Main Components Array lens, silicon gasket
Lens Material PC (Polycarbonate)
Lens Size 252 × 70 × 6.3 mm
Transmittance 91%
Beam Angle 136 × 78 degree
Quality Guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main Markets Europe, South America, North America, Asia
Lens Dimensions Drawing
84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket
LED Test Report
Parameter SUN-D252-84H1 (25W) SUN-D252-84H1 (40W) SUN-D252-84H1 (50W) SUN-D252-84H1 (60W)
Model No. SUN-D252-84H1 SUN-D252-84H1 SUN-D252-84H1 SUN-D252-84H1
Power (W) 25 40 50 60
Voltage (Vf/V) 39.44 40.98 41.74 42.53
Current (If/mA) 628 998.4 1198.3 1398.5
Color Temp Tc(K) 4000 4000 4000 4000
Efficiency (lm/W) 166.1 155.25 150.23 144.91
Luminous Flux (φv/lm) 4119 6352 7514 8619
Color Index (Ra) >70 >70 >70 >70
Lens beam angle 15/40/60/90/30x70/49x21/136x78/136x78 vertical degree 15/40/60/90/30x70/49x21/136x78/136x78 vertical degree 15/40/60/90/30x70/49x21/136x78/136x78 vertical degree 15/40/60/90/30x70/49x21/136x78/136x78 vertical degree
Wick 84pcs PH 3030 2D leds 84pcs PH 3030 2D leds 84pcs PH 3030 2D leds 84pcs PH 3030 2D leds
Protection level IP66 IP66 IP66 IP66
Working temperature (℃) -80 -80 -80 -80
Storage temperature (℃) -95 -95 -95 -95
Server Life (H) 50000 50000 50000 50000

Shipping & Delivery
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB/EXW/CIF/CFR
Sample Availability YES
Standard Delivery Time 3-4 working days
Applications
Street lighting, highway LED lamps, tunnel lamps, square lighting, road lamps, city lighting, parking spot illumination, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux output.
