5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting

Brand Name : Sunshineopto

Model Number : SUN-SL118X113-24-5050- TYPEII

Certification : SGS/CE/RoHS

Place of Origin : shenzhen

Price : Negotiate

Payment Terms : T/T,Western Union,MoneyGram,paypal

Packaging Details : carton

MOQ : 1

Supply Ability : 2000PCS/Month

Delivery Time : 7-10 working days

Lens Size : 118x113x7.7mm

Output Power : 30W/50W/60W/100W

Luminous Efficacy : 150LM/W

Match LED : 5050 SMD LED

Lens Angle : TYPE2

Color Rendering Index(Ra) : 80

Waterproof : IP65

Lens Material : PC

Woking Hours : 50000 Hours

Warranty : 3 years

Contact Now

5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting
High-performance LED light module featuring TYPEII optic lenses and 5050 SMD LEDs for outdoor lighting applications.
Product Overview
The 5050 SMD LED Light Module with IP65 waterproof rating and 150lm/W luminous efficacy is designed for outdoor lighting applications, offering high brightness, energy efficiency, and durability. Made for commercial and industrial sectors, this module is ideal for projects requiring weatherproof lighting, such as street lighting, floodlights, security lighting, landscape lighting and so on.The 5050 SMD LED provides exceptional light output while consuming minimal power, making it a reliable and cost-effective solution for large-scale lighting installations. Whether you are lighting up urban streets, highways, or building exteriors, this outdoor LED module guarantees long-lasting performance, even in the most demanding environments.This LED module is designed to meet the needs of customers in the lighting manufacturing, wholesale distribution, and contractor sectors, offering high-efficiency, IP65 waterproofing, and versatile compatibility with different lighting systems.
Product Specifications
Model No. SUN-SL118X113-24-5050-TYPEII
Output Power 30W/50W/60W/100W
Luminous Efficacy 150LM/W
Beam Angle TYPE2
Lens Size 118x113x7.7mm
Color Rendering Index(Ra) 80
Waterproof IP65
Transmittance 93%
Lens Material PC
Match LED 5050 SMD LED
Kit Components Array lens + silicon gasket + PCB + Heat sink
PCB Board Circuit 2 series 12 parallel / 48v
Woking Hours 50000 hours
Warranty 3 years
Product Details Drawing

Beam Angle Diagram:
5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting

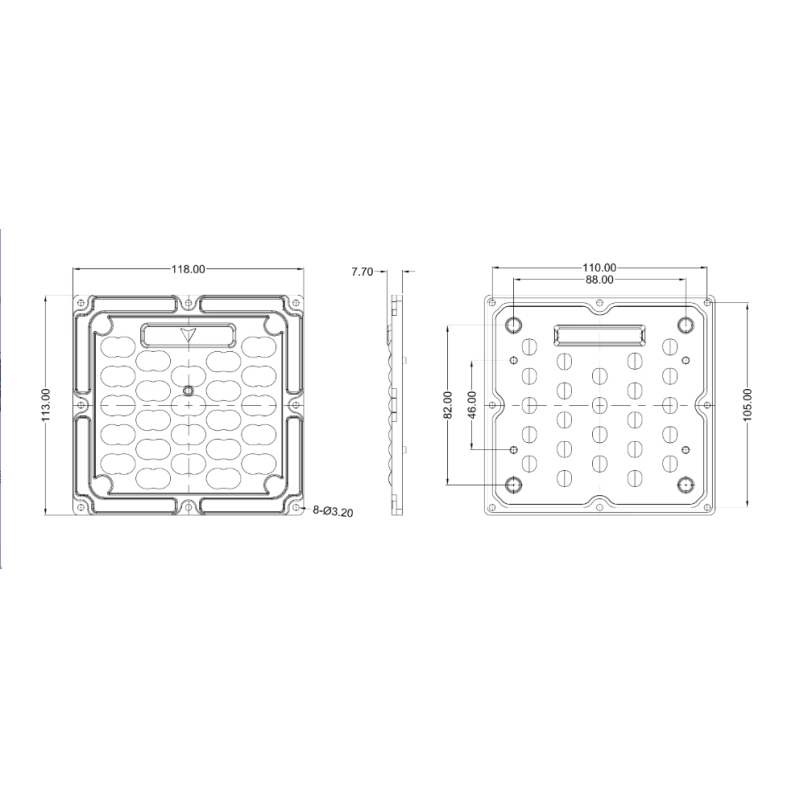

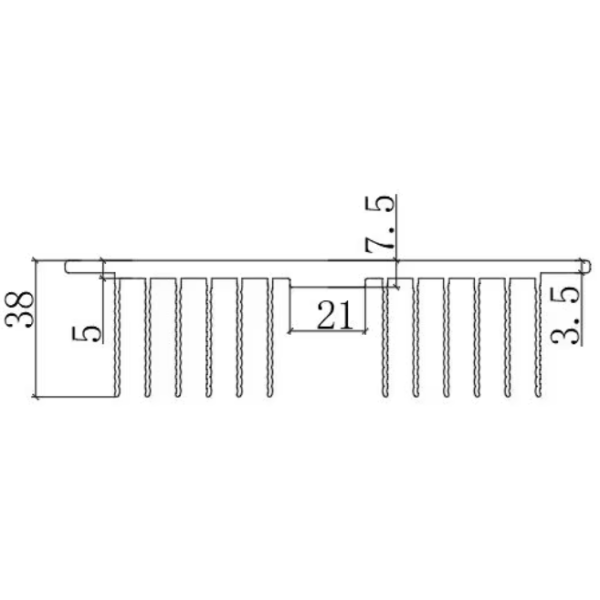

Lens and Heat Sink Dimensions Drawing:
5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting
5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting
Key Features
  • LED CHIP: 5050 SMD, high light output for bright illumination
  • Optical Grade PC Lens: Transmittance up to 93%, ensuring clear visibility
  • Beam Angle: Type2, suitable for wide area lighting needs
  • IP65 Waterproof Rating for Outdoor Durability
  • The heat sink of the module is optimized to ensure that it remains cool even during prolonged operation, making it ideal for high-power outdoor lighting systems
  • Lowest Total Cost Solution: Replaces old lamps efficiently, reducing costs
  • Industry-Leading Thermal Management
  • With high luminous efficacy, this module is designed to provide superior light output in street lights, floodlighting, security lighting, and other outdoor lighting applications.
Applications
  • Tunnel lights
  • Industrial lights
  • Parking lights
  • Warehouse lights
  • Street lamp
  • High bay light
  • Stadium lights
5050 SMD LED Light Module with IP65 Waterproof and 150lm/w Luminous Efficacy for Outdoor Lighting

Shipping & Delivery Informations
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CNF
Sample Availability YES
Standard Delivery Time 3-4 working days
