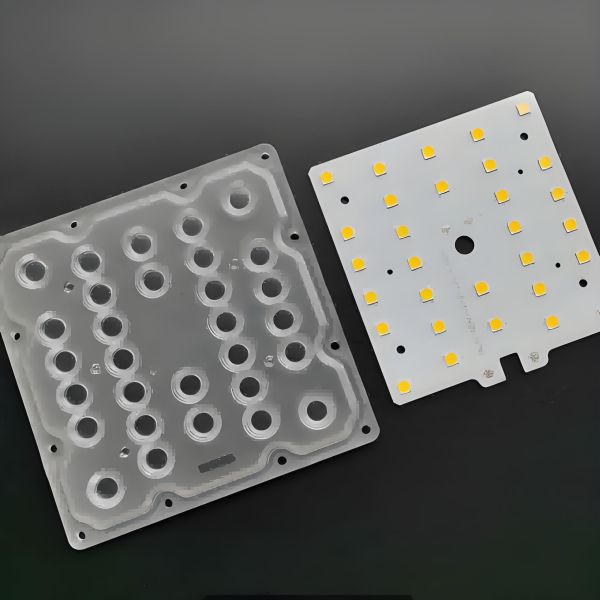

50W SMD 5050 LED PCB Board and 80x140 Degree Beam Angle Lens with Private Label

  • 1
  • 2
  • 3

Brand Name : SunshineOpto

Model Number : SUN-SL130x130-30-5050-80x140

Certification : SGS,RoHS,CE

Place of Origin : Shenzhen,China

MOQ : 100

Price : need to negotiation

Payment Terms : T/T,Western Union,MoneyGram,Paypal

Supply Ability : 20000 pcs/month

Delivery Time : 7-10 working days

Packaging Details : carton

Model No. : SUN-SL130x130-30-5050-80x140

PCB Size : 115.6x115.6 mm

Lens Size : 130x130 mm

PCB Circuit : 2 series 15 parallel

Beam Angle : 80x140 degree

Match Led : PH 5050 160-170lm/w 24v

Wick : 30 leds

Material : PC

Transmittance : 92%

LED CCT : 2200K,3000K,3500K,4000K,5000K,6000K

Contact Now

50W SMD 5050 LED PCB Board and 80x140 Degree Beam Angle Lens with Private Label
High-efficiency LED street light module designed for road lighting applications with superior optical performance and thermal management.
Product Overview
Introducing the Custom 50x50mm Optical LED Lens designed to fit seamlessly onto 50x80mm LED PCB boards, offering superior performance in a variety of lighting applications. This versatile optical lens comes with multiple beam angle options, making it ideal for LED lighting manufacturers, contractors, and wholesale distributors. It provides customized solutions for applications such as LED street lighting, floodlights, industrial lighting, and architectural lighting. Whether you are involved in large-scale outdoor lighting projects or commercial lighting, this 50x50mm optical LED lens offers high-quality light distribution, durability, and energy efficiency.The lens is made from high-quality optical-grade material, ensuring maximum light transmission and minimal light loss. It is engineered to enhance the performance of LED systems, improving overall brightness and illumination uniformity.
Product Specifications
Module Number SUN-SL130x130-30-5050-80x140
Lens Angle 80x140 degree
Lens Size 130 x 130 mm
PCB Size 115.6 x 115.6 mm
PCB Circuit 2 series 15 parallel
LED Type SMD 5050 LED
Kit Components LED lens, silicon gasket, PCB mounting LEDs, heat sink
LED CCT 2200K,3000K,3500K,4000K,5000K,6000K
Working Hours 50000+
Warranty 2 years
Quality Guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund
Lens Dimensions Drawing
50W SMD 5050 LED PCB Board and 80x140 Degree Beam Angle Lens with Private Label

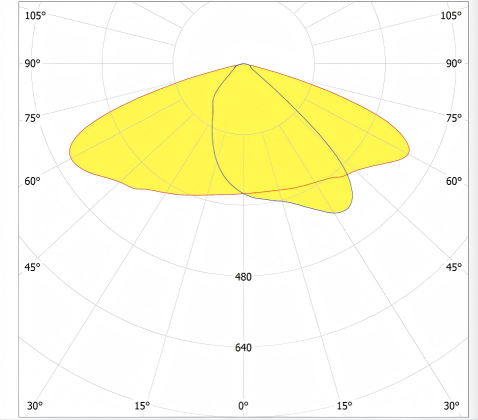

Beam Angle Drawing
50W SMD 5050 LED PCB Board and 80x140 Degree Beam Angle Lens with Private Label 50W SMD 5050 LED PCB Board and 80x140 Degree Beam Angle Lens with Private Label
Key Features
  • One of the standout features of this 50x50mm optical LED lens is its versatility in beam angles. Available in a variety of angles, this lens can be customized to meet the specific requirements of your lighting project. Whether you need a narrow beam for focused lighting or a wide beam for general illumination, this lens offers the flexibility to tailor the light distribution precisely according to the application
  • Optimized optical and construction design based on 5050 LED characteristics
  • Premium TEIJIN 1250Z imported PC materials for lens construction
  • Operating temperature range: -35°C to +70°C
  • Designed to withstand harsh outdoor environments, this 50x50mm optical LED lens is made from UV-resistant materials that prevent the lens from yellowing or degrading over time. The lens is also highly impact-resistant, ensuring that it maintains its optical performance even in challenging weather conditions, such as rain, snow, or high humidity
  • Directional lighting design prevents light pollution and ensures dark sky compliance
  • The high-efficiency of the 50x50mm optical LED lens not only improves the brightness of the light but also ensures that the system operates with minimal energy consumption. By increasing the light output and reducing power usage, this lens helps to deliver an energy-efficient lighting solution that is both environmentally friendly and cost-effective
Applications
  • Street lighting
  • Tunnel lighting
  • Industrial lighting systems
  • Parking facility lighting
  • Stadium and sports field lighting
  • High bay lighting
  • Warehouse lighting solutions
Shipping & Delivery Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB, EXW, CNF,CIF
Sample Availability Yes
Standard Delivery Time 3-4 working days
